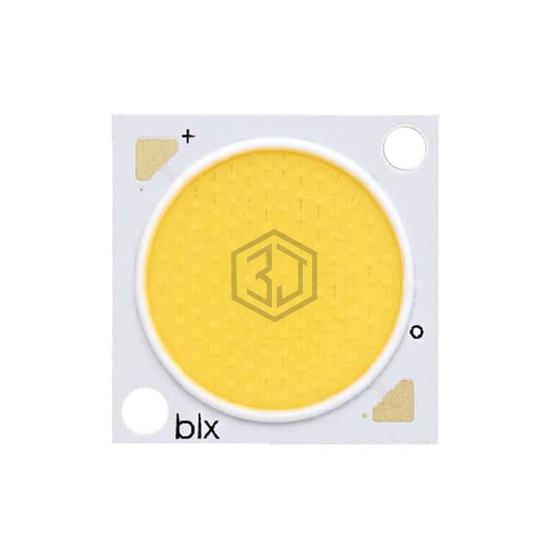

V18B WARM WHITE LED ARRAY
BXRE-27E4000-B-72 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V18B WARM WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 34V, color White, Warm, current - max 1.8A, size / dimension 24.00mm L x 24.00mm W.
In Stock: 5,617
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 4180lm (Typ) |
| Current - Test | 900mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34V |
| Lumens/Watt @ Current - Test | 137 lm/W |
| Current - Max | 1.8A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 24.00mm L x 24.00mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 19.20mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-27E4000-B-72 and get a quote within 24 hours.
