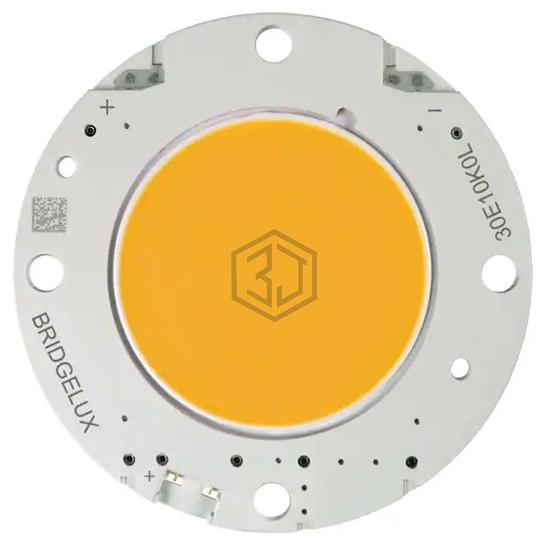

VERO 29D COOL WHITE LED ARRAY
BXRC-56H10K0-D-74 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VERO 29D COOL WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 37.6V, color White, Cool, current - max 4.2A, size / dimension 49.20mm Dia.
In Stock: 7,262
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5600K 4-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Round |
| Luminous Flux @ Current/Temperature | 10410lm (Typ) |
| Current - Test | 2.1A |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 37.6V |
| Lumens/Watt @ Current - Test | 132 lm/W |
| Current - Max | 4.2A |
| CRI (Color Rendering Index) | 97 (Typ) |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 49.20mm Dia |
| Height | 1.90mm |
| Light Emitting Surface (LES) | 29.20mm Dia |
| Lens Type | Flat |
