VERO SE 10D NEUTRAL WHITE LED AR

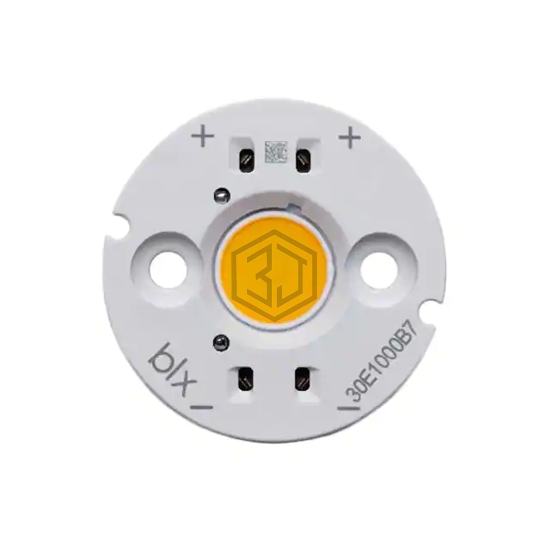

BXRC-40A1001-D-73-SE is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VERO SE 10D NEUTRAL WHITE LED AR. Key specifications: voltage - forward (vf) (typ) 25.3V, color White, Neutral, current - max 700mA, size / dimension 30.80mm Dia.
In Stock: 3,196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Round |
| Luminous Flux @ Current/Temperature | 1057lm (Typ) |
| Current - Test | 350mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 25.3V |
| Lumens/Watt @ Current - Test | 119 lm/W |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 93 (Typ) |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 30.80mm Dia |
| Height | 3.60mm |
| Light Emitting Surface (LES) | 9.90mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRC-40A1001-D-73-SE and get a quote within 24 hours.
