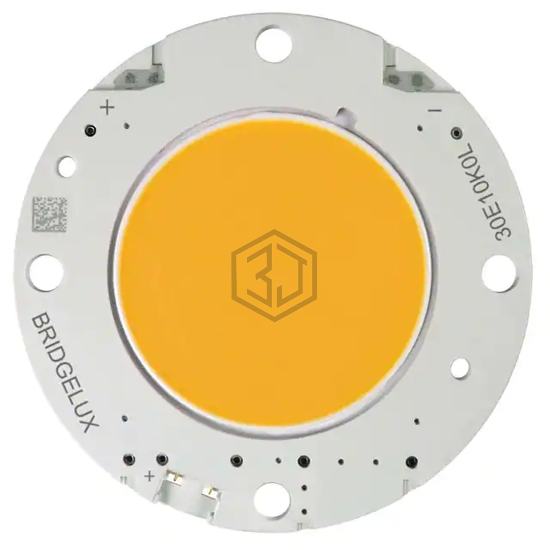

BXRC-35E10K0-L-23 - Bridgelux - LED Lighting - COBs, Engines, Modules, Strips

BXRC-35E10K0-L-23

Bridgelux

LED ARRAY 10000LM WARM WHITE COB

BXRC-35E10K0-L-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED ARRAY 10000LM WARM WHITE COB. Key specifications: voltage - forward (vf) (typ) 38V, color White, Warm, current - max 4.2A, size / dimension 49.20mm Dia.

In Stock: 70

Product Attributes

AttributeValue
Product StatusObsolete
TypeChip On Board (COB)
ColorWhite, Warm
CCT (K)3500K 3-Step MacAdam Ellipse
Wavelength-
ConfigurationRound
Luminous Flux @ Current/Temperature11399lm (Typ)
Current - Test2.1A
Temperature - Test25°C
Voltage - Forward (Vf) (Typ)38V
Lumens/Watt @ Current - Test143 lm/W
Current - Max4.2A
CRI (Color Rendering Index)80
Viewing Angle120°
FeaturesWith Connector
Size / Dimension49.20mm Dia
Height1.90mm
Light Emitting Surface (LES)29.20mm Dia
Lens TypeFlat

Frequently Asked Questions

BXRC-35E10K0-L-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED ARRAY 10000LM WARM WHITE COB

The supply voltage of BXRC-35E10K0-L-23 is 38V.

The color of BXRC-35E10K0-L-23 is White, Warm.

The current rating of BXRC-35E10K0-L-23 is 4.2A.

Yes, BXRC-35E10K0-L-23 is listed as Obsolete. Consider requesting a quote for alternative parts.
