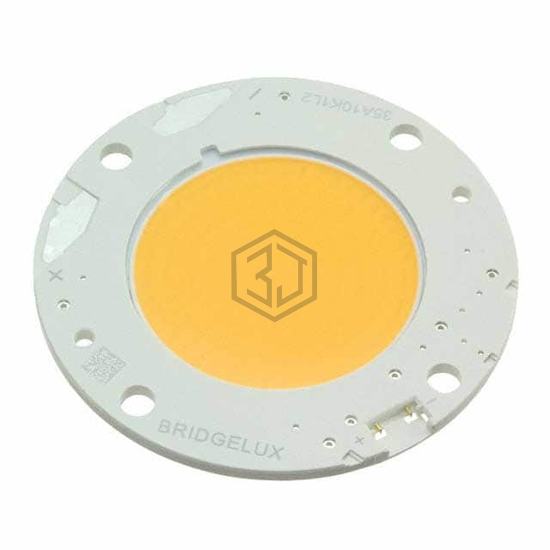

LED ARRAY 3000K WHT 10K LM COB
BXRC-35A10K1-L-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED ARRAY 3000K WHT 10K LM COB. Key specifications: voltage - forward (vf) (typ) 37.2V, color White, Warm, current - max 4.2A, size / dimension 49.20mm Dia.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Round |
| Luminous Flux @ Current/Temperature | 7637lm (Typ) |
| Current - Test | 2.1A |
| Temperature - Test | 70°C |
| Voltage - Forward (Vf) (Typ) | 37.2V |
| Lumens/Watt @ Current - Test | 98 lm/W |
| Current - Max | 4.2A |
| CRI (Color Rendering Index) | 93 |
| Viewing Angle | 120° |
| Features | With Connector |
| Size / Dimension | 49.20mm Dia |
| Height | 1.90mm |
| Light Emitting Surface (LES) | 29.20mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRC-35A10K1-L-23 and get a quote within 24 hours.
