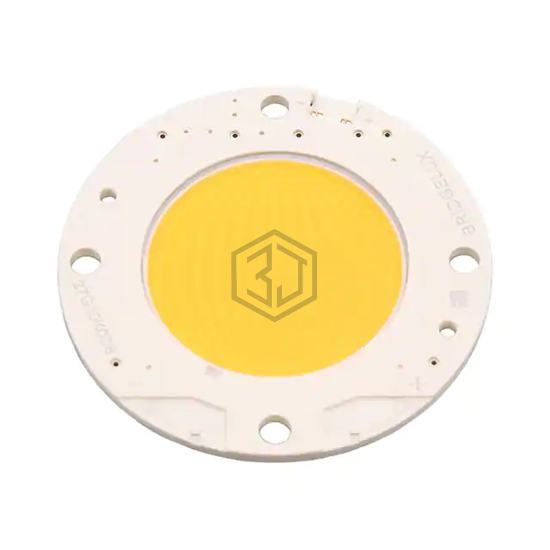

BXRC-30G4000-D-83 - Bridgelux - LED Lighting - COBs, Engines, Modules, Strips

BXRC-30G4000-D-83

Bridgelux

VERO 18D WARM WHITE LED ARRAY

BXRC-30G4000-D-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VERO 18D WARM WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 28.2V, color White, Warm, current - max 2.5A, size / dimension 36.20mm Dia.

In Stock: 100

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Warm
CCT (K)3000K 3-Step MacAdam Ellipse
Wavelength-
ConfigurationRound
Luminous Flux @ Current/Temperature3497lm (Typ)
Current - Test850mA
Temperature - Test25°C
Voltage - Forward (Vf) (Typ)28.2V
Lumens/Watt @ Current - Test146 lm/W
Current - Max2.5A
CRI (Color Rendering Index)90
Viewing Angle120°
FeaturesWith Connector
Size / Dimension36.20mm Dia
Height1.90mm
Light Emitting Surface (LES)18.50mm Dia
Lens TypeFlat

Frequently Asked Questions

BXRC-30G4000-D-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VERO 18D WARM WHITE LED ARRAY

The supply voltage of BXRC-30G4000-D-83 is 28.2V.

The color of BXRC-30G4000-D-83 is White, Warm.

The current rating of BXRC-30G4000-D-83 is 2.5A.
