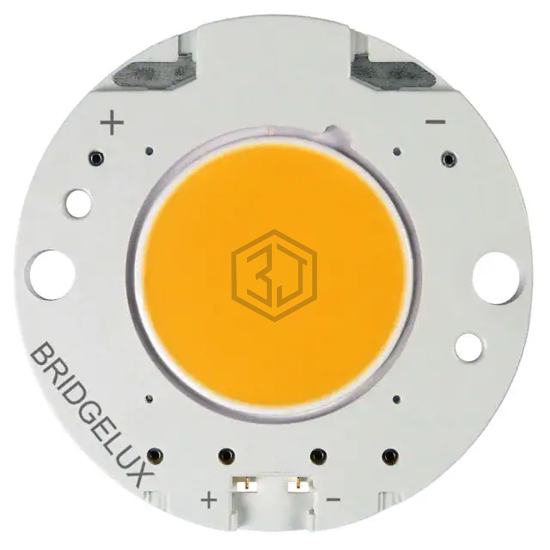

LED ARRAY 4000LM WARM WHITE COB
BXRC-30E4000-F-23 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED ARRAY 4000LM WARM WHITE COB. Key specifications: voltage - forward (vf) (typ) 29.5V, color White, Warm, current - max 2.1A, size / dimension 36.20mm Dia.
In Stock: 1,353
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Round |
| Luminous Flux @ Current/Temperature | 4097lm (Typ) |
| Current - Test | 1.05A |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 29.5V |
| Lumens/Watt @ Current - Test | 132 lm/W |
| Current - Max | 2.1A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | With Connector |
| Size / Dimension | 36.20mm Dia |
| Height | 1.90mm |
| Light Emitting Surface (LES) | 18.40mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRC-30E4000-F-23 and get a quote within 24 hours.
