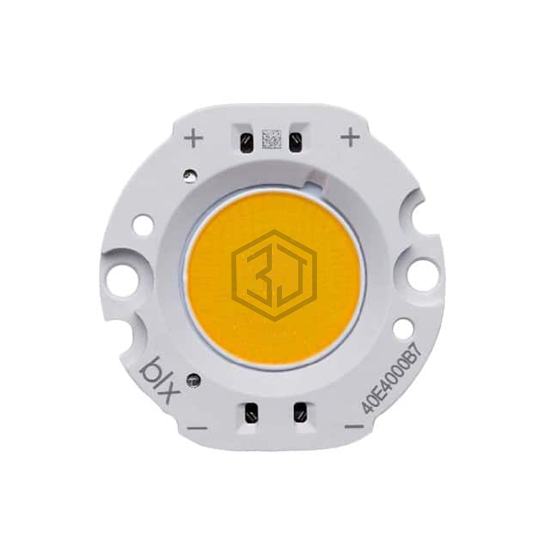

VERO SE 18B WARM WHITE LED ARRAY
BXRC-27H4000-B-73-SE is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VERO SE 18B WARM WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 33.9V, color White, Warm, current - max 1.8A, size / dimension 36.20mm Dia.
In Stock: 2,284
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Round |
| Luminous Flux @ Current/Temperature | 3072lm (Typ) |
| Current - Test | 900mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 33.9V |
| Lumens/Watt @ Current - Test | 101 lm/W |
| Current - Max | 1.8A |
| CRI (Color Rendering Index) | 97 (Typ) |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 36.20mm Dia |
| Height | 3.60mm |
| Light Emitting Surface (LES) | 18.40mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRC-27H4000-B-73-SE and get a quote within 24 hours.
