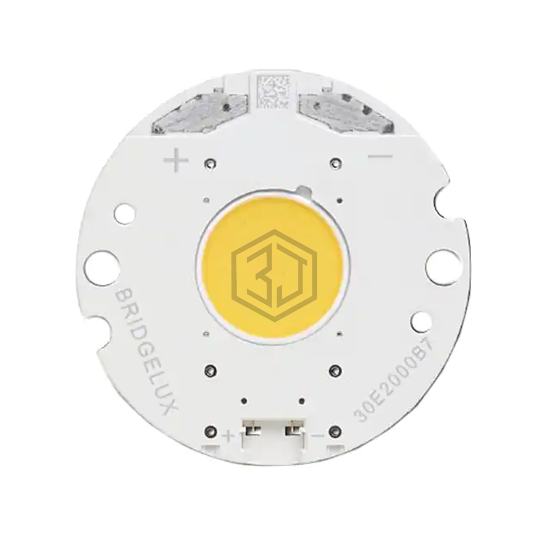

BXRC-27E2000-C-73 - Bridgelux - LED Lighting - COBs, Engines, Modules, Strips

BXRC-27E2000-C-73

Bridgelux

LED COB VERO 13 2700K ROUND

BXRC-27E2000-C-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED COB VERO 13 2700K ROUND. Key specifications: voltage - forward (vf) (typ) 34.1V, color White, Warm, current - max 1.26A, size / dimension 36.20mm Dia.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Warm
CCT (K)2700K 3-Step MacAdam Ellipse
Wavelength-
ConfigurationRound
Luminous Flux @ Current/Temperature2926lm (Typ)
Current - Test630mA
Temperature - Test85°C
Voltage - Forward (Vf) (Typ)34.1V
Lumens/Watt @ Current - Test136 lm/W
Current - Max1.26A
CRI (Color Rendering Index)80
Viewing Angle-
FeaturesWith Connector
Size / Dimension36.20mm Dia
Height1.90mm
Light Emitting Surface (LES)13.20mm Dia
Lens TypeFlat

Frequently Asked Questions

BXRC-27E2000-C-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED COB VERO 13 2700K ROUND

The supply voltage of BXRC-27E2000-C-73 is 34.1V.

The color of BXRC-27E2000-C-73 is White, Warm.

The current rating of BXRC-27E2000-C-73 is 1.26A.
