EB GEN 3 LED MODULE, 560 MM, 400

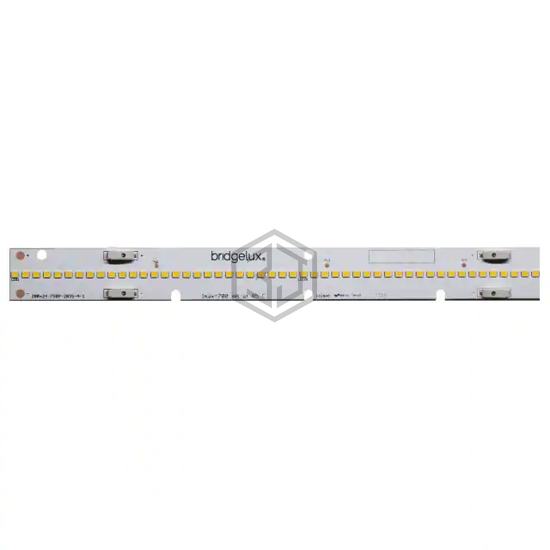

BXEB-L0560Z-40S2000-C-C3 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. EB GEN 3 LED MODULE, 560 MM, 400. Key specifications: voltage - forward (vf) (typ) 20.3V, color White, Neutral, current - max 1.92A, size / dimension 560.00mm L x 24.00mm W.
In Stock: 39
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LED Module |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Linear Light Strip |
| Luminous Flux @ Current/Temperature | 2690lm (Typ) |
| Current - Test | 960mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 20.3V |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Current - Max | 1.92A |
| CRI (Color Rendering Index) | 98 (Typ) |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 560.00mm L x 24.00mm W |
| Height | 6.10mm |
| Light Emitting Surface (LES) | - |
| Lens Type | Flat |
Submit your RFQ for BXEB-L0560Z-40S2000-C-C3 and get a quote within 24 hours.
