FIXED IND 2.2UH 5.4A 11.2MOHM SM

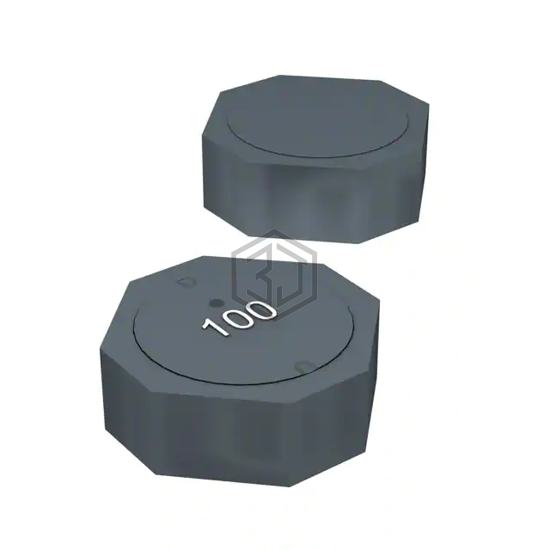

SRU8043-2R2Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 2.2UH 5.4A 11.2MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.4 A.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5.4 A |
| Current - Saturation (Isat) | 5.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11.2mOhm |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | 65MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
