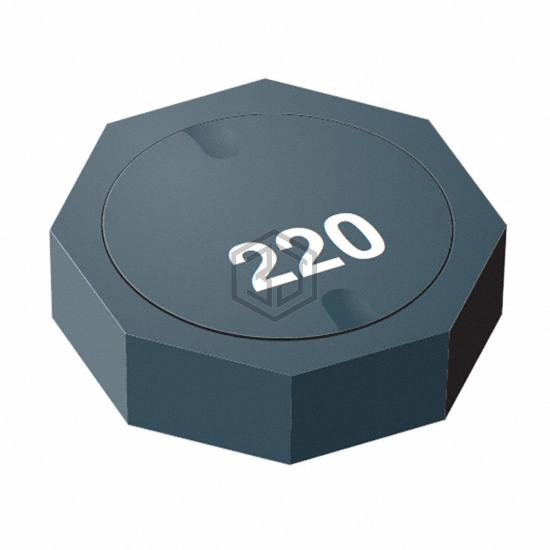

FIXED IND 220UH 420MA 1.25OHM SM
SRU6025A-221Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 220UH 420MA 1.25OHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 420 mA.
In Stock: 2,344
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 420 mA |
| Current - Saturation (Isat) | 240mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.25Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 4MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.256" L x 0.244" W (6.50mm x 6.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
