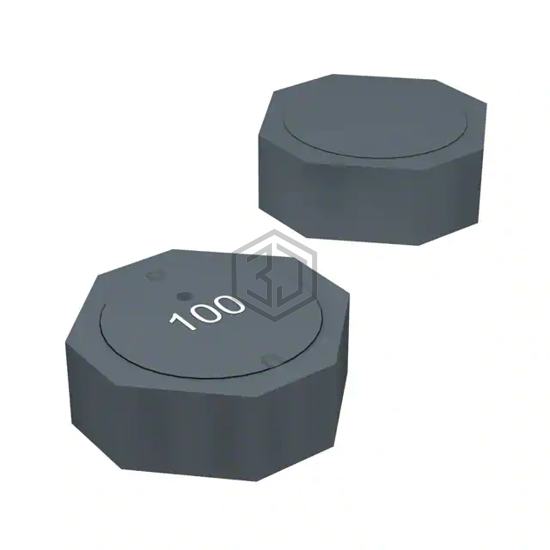

FIXED IND 1.5UH 2.5A 15.5MOHM SM
SRU5018-1R5Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1.5UH 2.5A 15.5MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.5 A.
In Stock: 2,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.5 A |
| Current - Saturation (Isat) | 2.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 15.5mOhm |
| Q @ Freq | 9 @ 7.96MHz |
| Frequency - Self Resonant | 160MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
