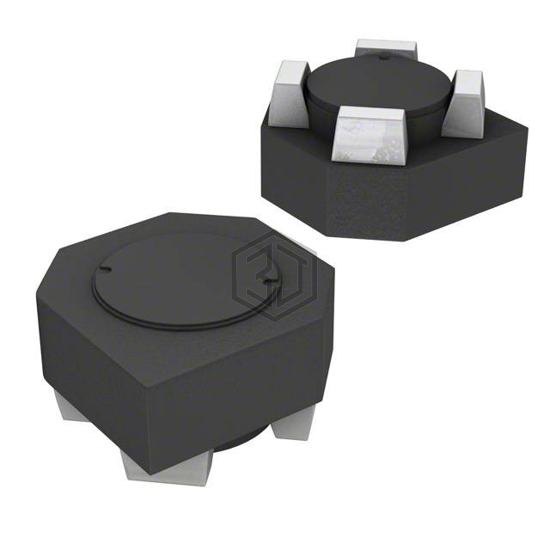

FIXED IND 4.7UH 1.1A 68 MOHM SMD
SRU3017-4R7Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 4.7UH 1.1A 68 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.1 A.
In Stock: 566
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 630mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 68mOhm |
| Q @ Freq | 10 @ 7.96MHz |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRU3017-4R7Y and get a quote within 24 hours.
