FIXED IND 10UH 870MA 430MOHM SMD

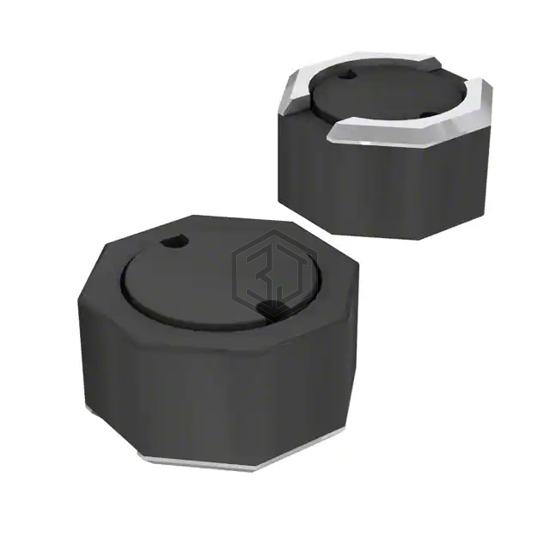

SRU2016-100Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 870MA 430MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 870 mA.
In Stock: 2,650
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 870 mA |
| Current - Saturation (Isat) | 520mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 430mOhm Max |
| Q @ Freq | 9 @ 2.52MHz |
| Frequency - Self Resonant | 45MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for SRU2016-100Y and get a quote within 24 hours.
