FIXED IND 3.3UH 4.6A 20 MOHM SMD

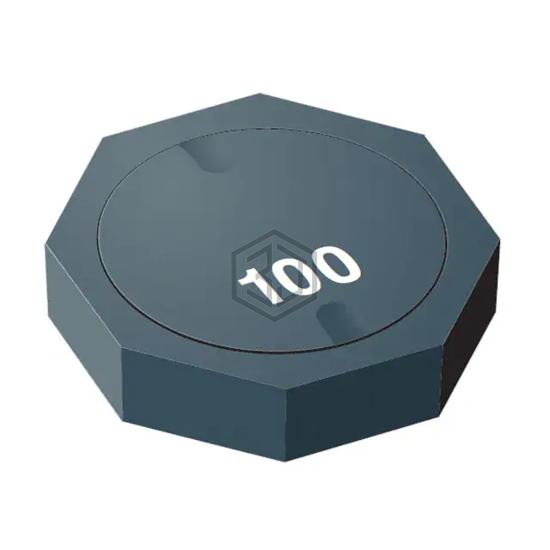

SRU1028A-3R3Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 4.6A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.6 A.
In Stock: 3,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | 4.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | 14 @ 7.96MHz |
| Frequency - Self Resonant | 55MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for SRU1028A-3R3Y and get a quote within 24 hours.
