FIXED IND 56UH 850MA 200MOHM SMD

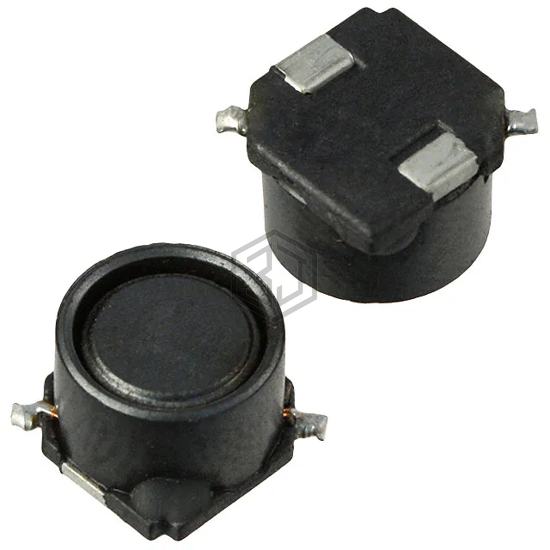

SRR7045-560M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 56UH 850MA 200MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 850 mA.
In Stock: 6,731
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | 650mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 21 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |
Submit your RFQ for SRR7045-560M and get a quote within 24 hours.
