FIXED IND 10UH 1A 75 MOHM SMD

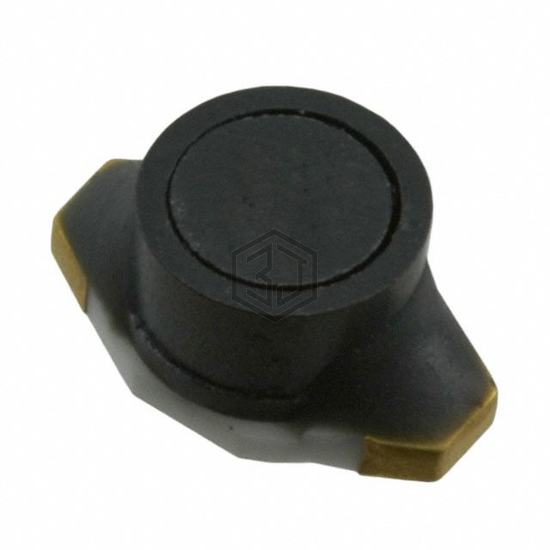

SRR6603-100ML is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 1A 75 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 370mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 75mOhm Max |
| Q @ Freq | 40 @ 200kHz |
| Frequency - Self Resonant | 38MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.173" W (6.60mm x 4.40mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRR6603-100ML and get a quote within 24 hours.
