FIXED IND 82UH 700MA 290MOHM SMD

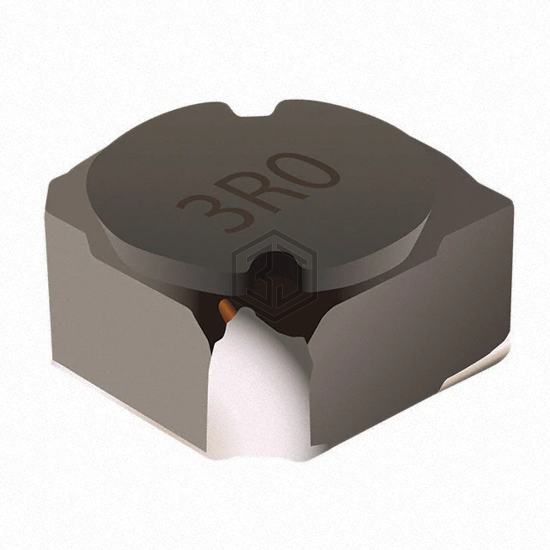

SRR6040A-820M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 82UH 700MA 290MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, Corner Terminals, current rating (amps) 700 mA.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 630mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SRR6040A-820M and get a quote within 24 hours.
