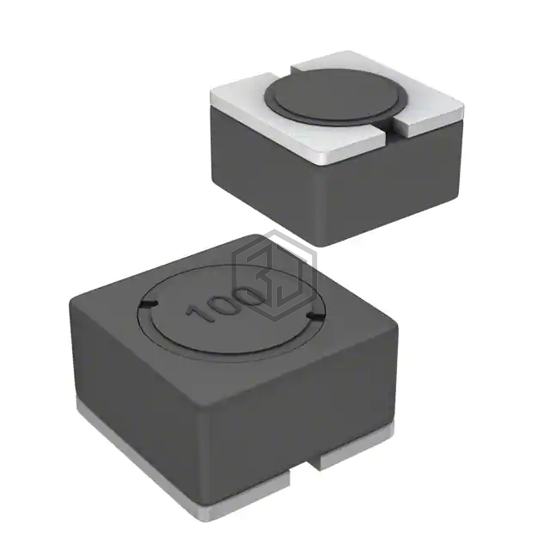

FIXED IND 3.3UH 3.5A 20 MOHM SMD
SRR6038-3R3Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 3.3UH 3.5A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 596
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 3.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | 9.8 @ 7.96MHz |
| Frequency - Self Resonant | 75.9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
