FIXED IND 27UH 1.2A 109 MOHM SMD

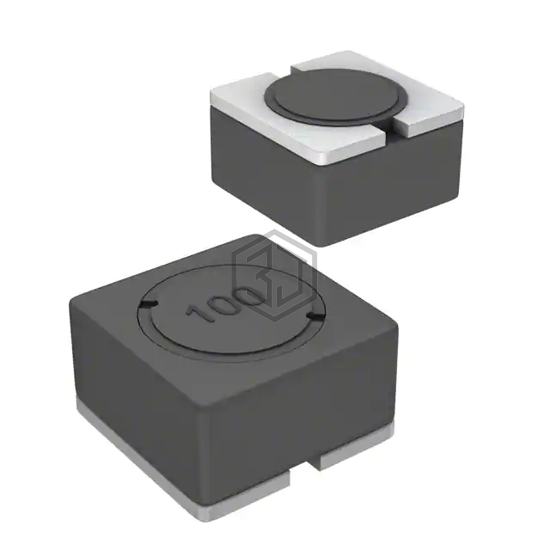

SRR6038-270Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 27UH 1.2A 109 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.2 A.
In Stock: 2,561
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 27 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.2 A |
| Current - Saturation (Isat) | 1.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 109mOhm Max |
| Q @ Freq | 7.7 @ 2.52MHz |
| Frequency - Self Resonant | 12.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
