FIXED IND 56UH 850MA 260MOHM SMD

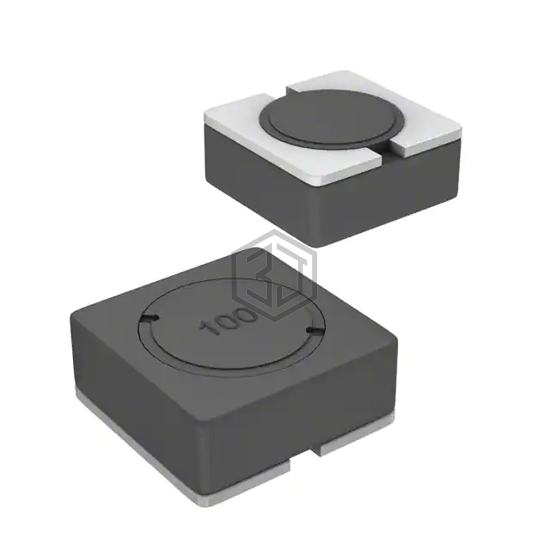

SRR6028-560Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 56UH 850MA 260MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 850 mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | 650mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 260mOhm Max |
| Q @ Freq | 10 @ 796kHz |
| Frequency - Self Resonant | 15MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRR6028-560Y and get a quote within 24 hours.
