FIXED IND 330UH 370MA 1.4OHM SMD

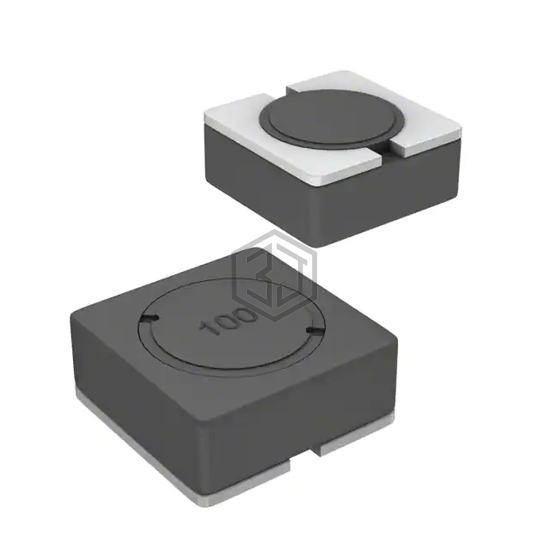

SRR6028-331Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 330UH 370MA 1.4OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 370 mA.
In Stock: 7,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 370 mA |
| Current - Saturation (Isat) | 270mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.4Ohm Max |
| Q @ Freq | 11 @ 796kHz |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRR6028-331Y and get a quote within 24 hours.
