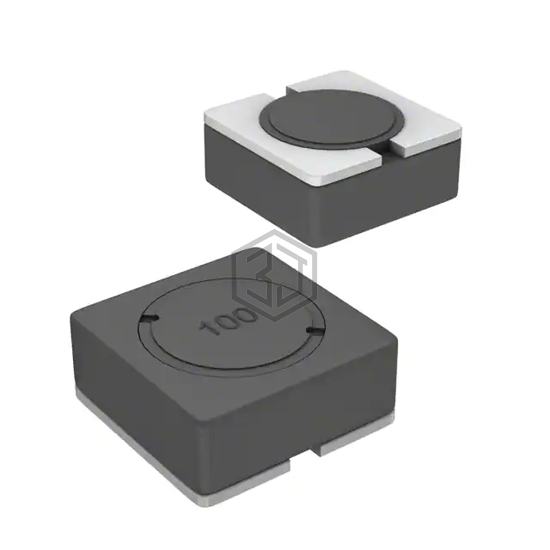

FIXED IND 1MH 150MA 4.5 OHM SMD
SRR6028-102Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1MH 150MA 4.5 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 150 mA.
In Stock: 5,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±30% |
| Current Rating (Amps) | 150 mA |
| Current - Saturation (Isat) | 170mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.5Ohm Max |
| Q @ Freq | 32 @ 252kHz |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
