FIXED IND 47UH 520MA 550MOHM SMD

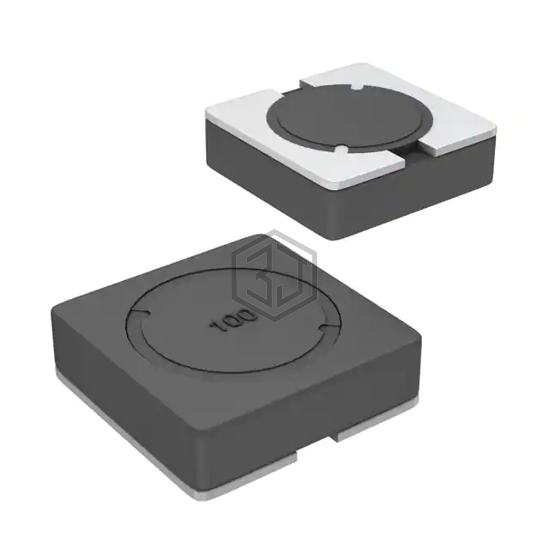

SRR5018-470Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 47UH 520MA 550MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 520 mA.
In Stock: 1,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 600mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 8.9 @ 2.52MHz |
| Frequency - Self Resonant | 14MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRR5018-470Y and get a quote within 24 hours.
