FIXED IND 100UH 350MA 1.1OHM SMD

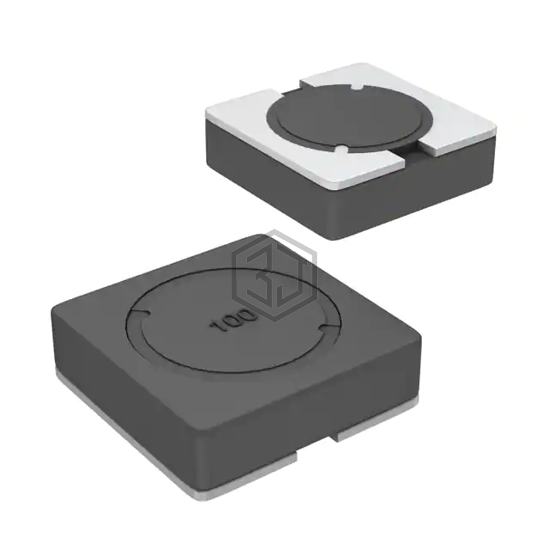

SRR5018-101Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100UH 350MA 1.1OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 350 mA.
In Stock: 16,294
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | 420mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.1Ohm Max |
| Q @ Freq | 13.1 @ 796kHz |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRR5018-101Y and get a quote within 24 hours.
