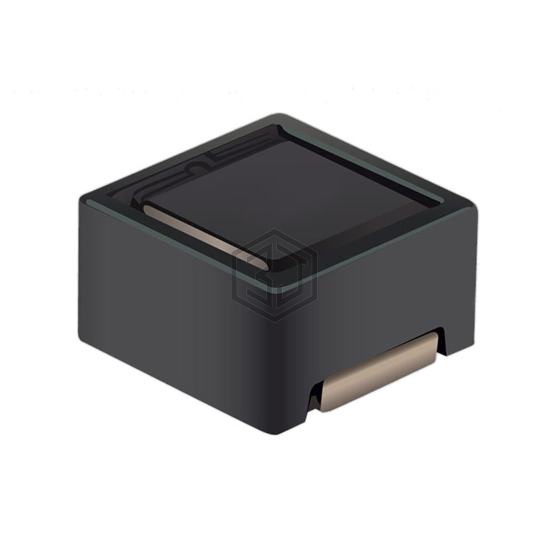

FIXED IND 100UH 700MA 600MOHM SM
SRR4828A-101M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 100UH 700MA 600MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 700 mA.
In Stock: 499
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 330mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRR4828A-101M and get a quote within 24 hours.
