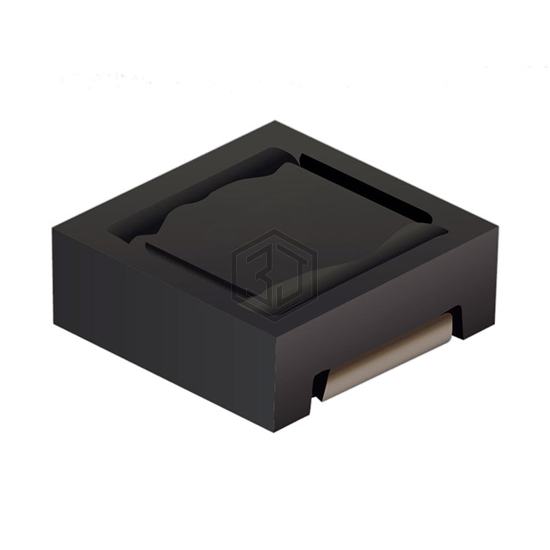

FIXED IND 4.7UH 2.6A 80 MOHM SMD
SRR4818A-4R7Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 4.7UH 2.6A 80 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 2.6 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
