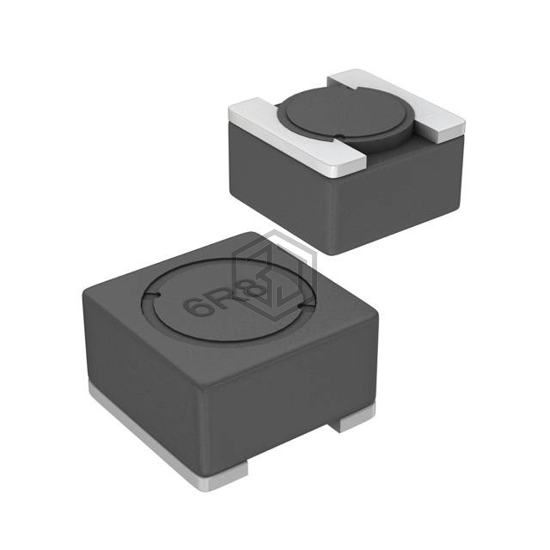

FIXED IND 560UH 220MA 3 OHM SMD
SRR4028-561Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 560UH 220MA 3 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1919 (4848 Metric), current rating (amps) 220 mA.
In Stock: 25,679
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | 150mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 3Ohm Max |
| Q @ Freq | 16.46 @ 796kHz |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1919 (4848 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRR4028-561Y and get a quote within 24 hours.
