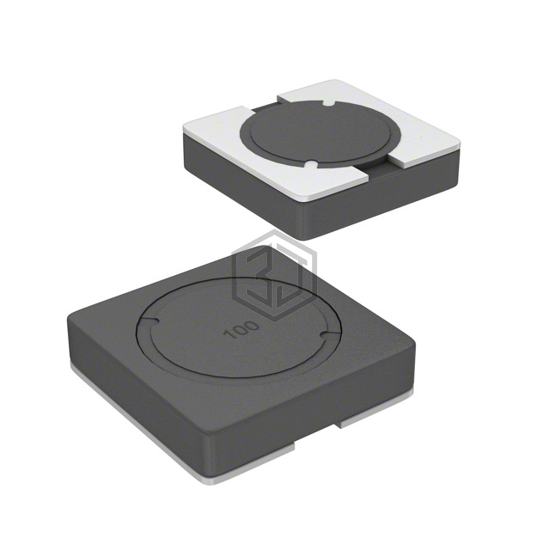

FIXED IND 47UH 480MA 1.25OHM SMD
SRR4011-470YL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 47UH 480MA 1.25OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 480 mA.
In Stock: 920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | 400mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.25Ohm Max |
| Q @ Freq | 10 @ 2.52MHz |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
Submit your RFQ for SRR4011-470YL and get a quote within 24 hours.
