FIXED IND 10UH 1A 240 MOHM SMD

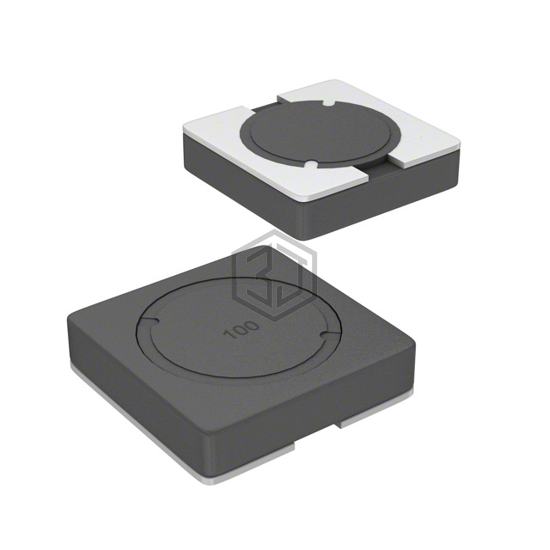

SRR4011-100YL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10UH 1A 240 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1 A.
In Stock: 9,511
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | 830mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 240mOhm |
| Q @ Freq | 14 @ 2.52MHz |
| Frequency - Self Resonant | 41MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.051" (1.30mm) |
Submit your RFQ for SRR4011-100YL and get a quote within 24 hours.
