FIXED IND 47UH 560MA 1.03OHM SMD

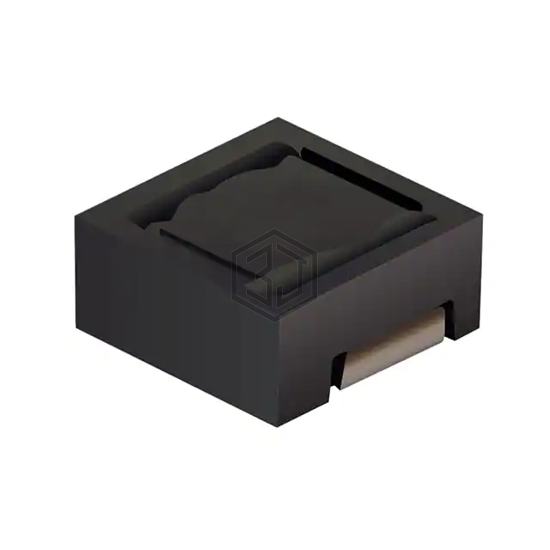

SRR3818A-470M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 47UH 560MA 1.03OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 560 mA.
In Stock: 55
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 560 mA |
| Current - Saturation (Isat) | 300mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.03Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 15MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
