FIXED IND 1UH 3.6A 37 MOHM SMD

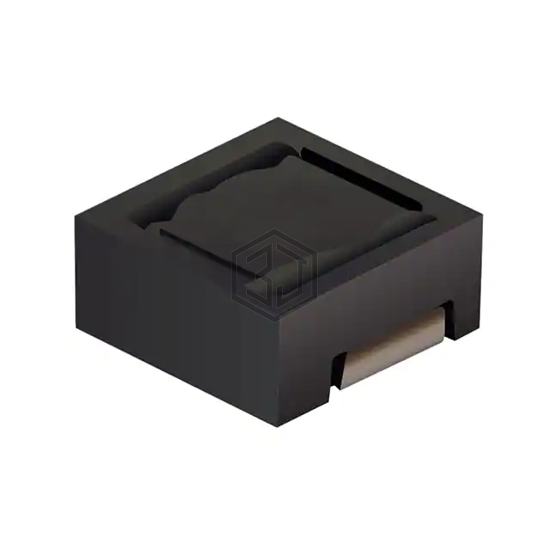

SRR3818A-1R0Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 1UH 3.6A 37 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case Nonstandard, current rating (amps) 3.6 A.
In Stock: 1,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.6 A |
| Current - Saturation (Isat) | 2.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 37mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 165MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for SRR3818A-1R0Y and get a quote within 24 hours.
