FIXED IND 560UH 800MA 960MOHM SM

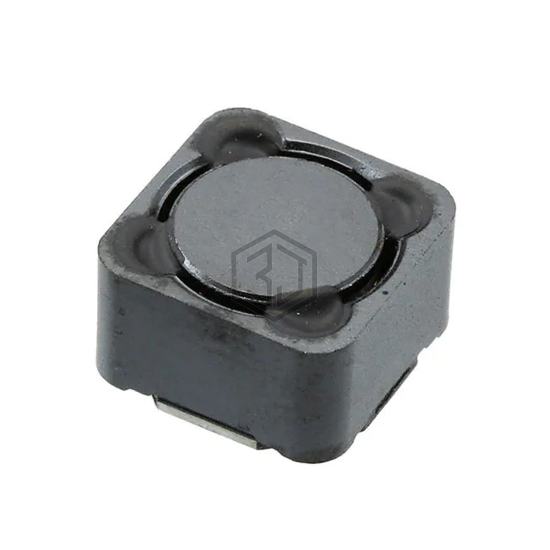

SRR1280A-561K is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 560UH 800MA 960MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 800 mA.
In Stock: 3,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | 1.15A |
| Shielding | Shielded |
| DC Resistance (DCR) | 960mOhm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1280 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for SRR1280A-561K and get a quote within 24 hours.
