FIXED IND 68UH 1.5A 200 MOHM SMD

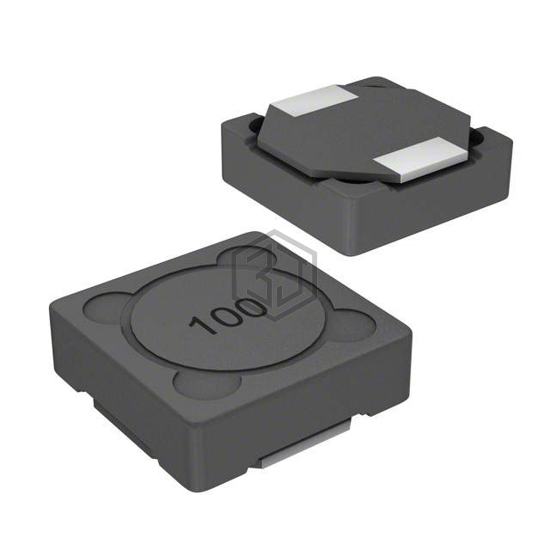

SRR1240-680M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 68UH 1.5A 200 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.5 A.
In Stock: 710
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 19 @ 2.52MHz |
| Frequency - Self Resonant | 11MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for SRR1240-680M and get a quote within 24 hours.
