FIXED IND 6.8UH 7.85A 15MOHM SMD

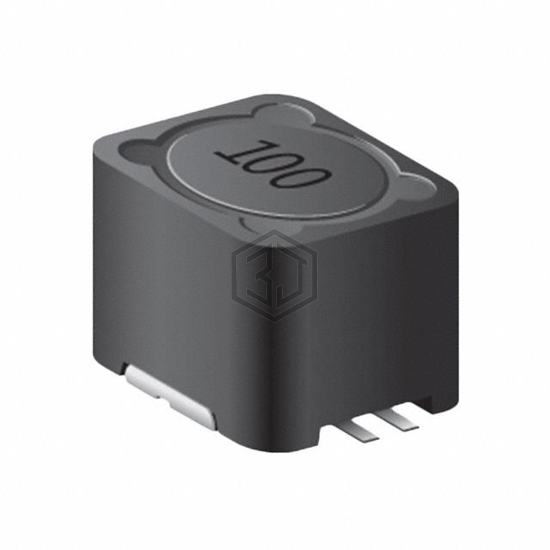

SRR1210A-6R8Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 6.8UH 7.85A 15MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.85 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 7.85 A |
| Current - Saturation (Isat) | 8.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | 12 @ 7.96MHz |
| Frequency - Self Resonant | 20MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for SRR1210A-6R8Y and get a quote within 24 hours.
