FIXED IND 4.7UH 8.5A 12 MOHM SMD

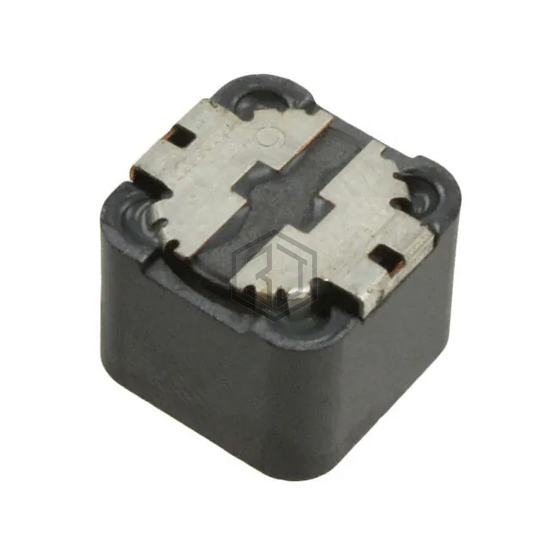

SRR1210-4R7Y is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 4.7UH 8.5A 12 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 8.5 A.
In Stock: 498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 8.5 A |
| Current - Saturation (Isat) | 9.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 12mOhm Max |
| Q @ Freq | 8 @ 7.96MHz |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for SRR1210-4R7Y and get a quote within 24 hours.
