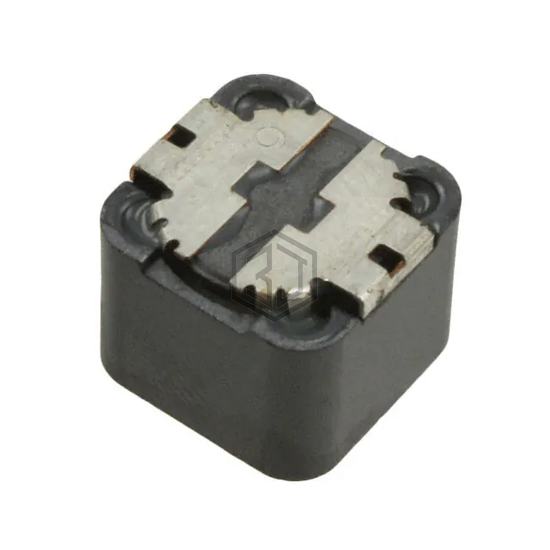

FIXED IND 15UH 5.8A 32 MOHM SMD
SRR1210-150M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 15UH 5.8A 32 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.8 A.
In Stock: 17,860
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 5.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 32mOhm Max |
| Q @ Freq | 16 @ 2.52MHz |
| Frequency - Self Resonant | 10.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for SRR1210-150M and get a quote within 24 hours.
