FIXED IND 560UH 650MA 900MOHM SM

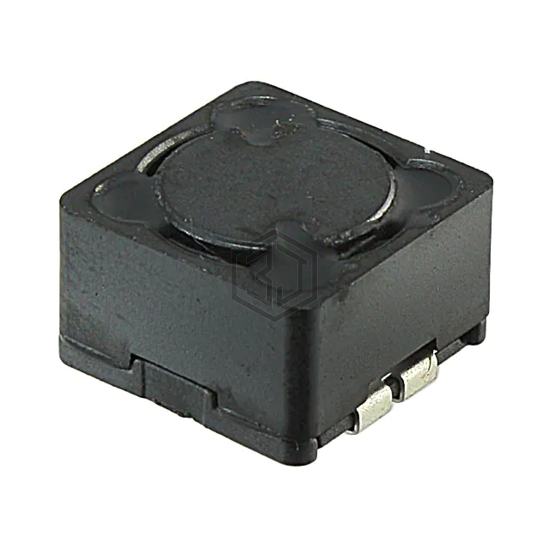

SRR1208-561KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 560UH 650MA 900MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 650 mA.
In Stock: 800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 900mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 900mOhm Max |
| Q @ Freq | 14 @ 796kHz |
| Frequency - Self Resonant | 1.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
Submit your RFQ for SRR1208-561KL and get a quote within 24 hours.
