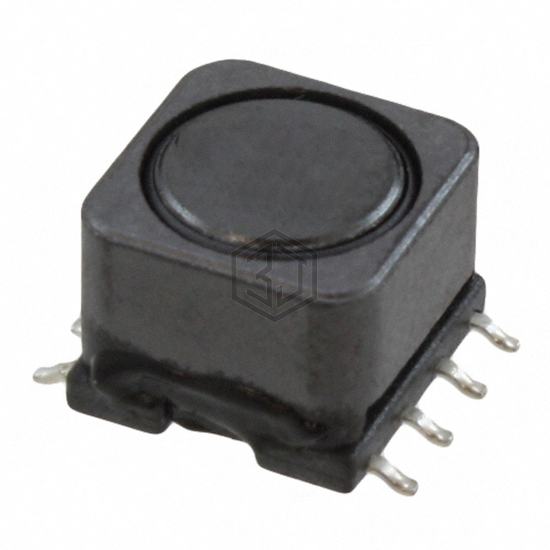

FIXED IND 15MH 80MA 40 OHM SMD
SRR0908-153YL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 15MH 80MA 40 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SMD, Gull Wing, current rating (amps) 80 mA.
In Stock: 1,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 15 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 80 mA |
| Current - Saturation (Isat) | 120mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 40Ohm Max |
| Q @ Freq | 130 @ 79.6kHz |
| Frequency - Self Resonant | 400kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.307" (7.80mm) |
Submit your RFQ for SRR0908-153YL and get a quote within 24 hours.
