FIXED IND 10MH 90MA 26 OHM SMD

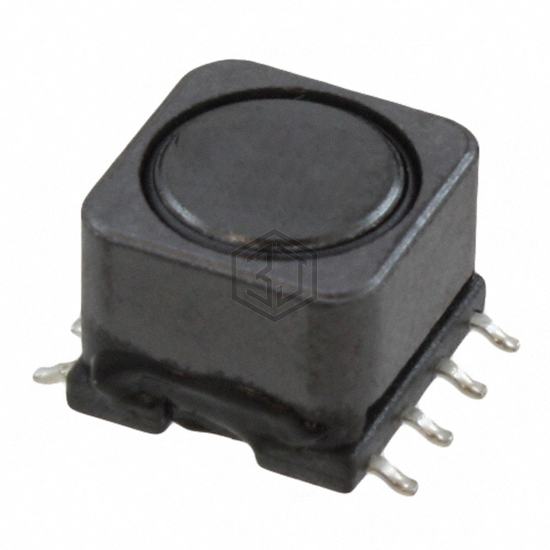

SRR0908-103YL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10MH 90MA 26 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SMD, Gull Wing, current rating (amps) 90 mA.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 90 mA |
| Current - Saturation (Isat) | 130mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 26Ohm Max |
| Q @ Freq | 110 @ 79.6kHz |
| Frequency - Self Resonant | 500kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.307" (7.80mm) |
