FIXED IND 10MH 70MA 38 OHM SMD

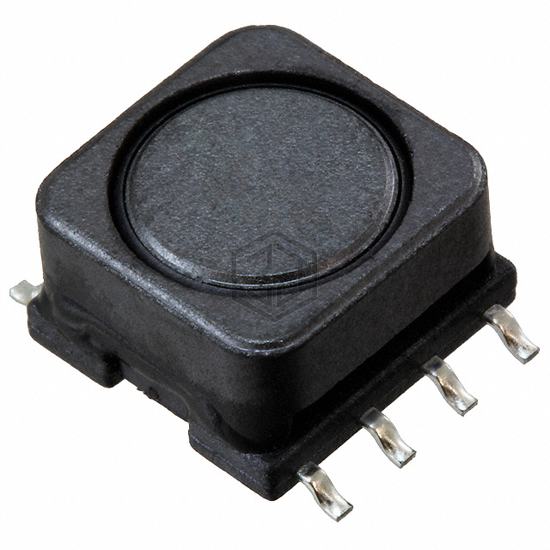

SRR0906-103YL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 10MH 70MA 38 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SMD, Gull Wing, current rating (amps) 70 mA.
In Stock: 2,380
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 mH |
| Tolerance | ±15% |
| Current Rating (Amps) | 70 mA |
| Current - Saturation (Isat) | 80mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 38Ohm Max |
| Q @ Freq | 100 @ 79.6kHz |
| Frequency - Self Resonant | 700kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.374" W (10.00mm x 9.50mm) |
| Height - Seated (Max) | 0.248" (6.30mm) |
