FIXED IND 8.2UH 1.75A 80MOHM SMD

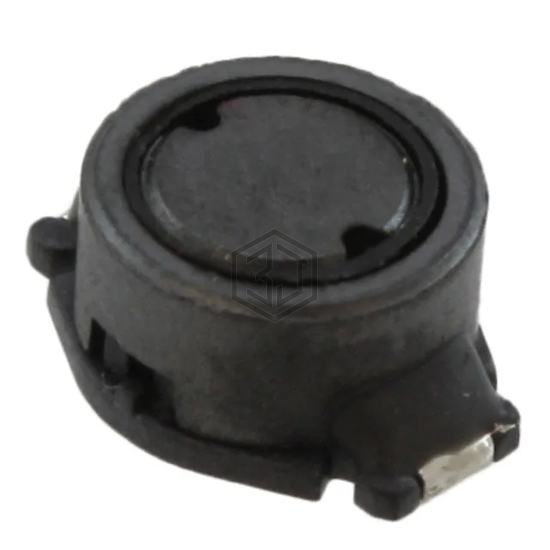

SRR0805-8R2M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 8.2UH 1.75A 80MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.75 A.
In Stock: 1,159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | 2.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 19 @ 7.96MHz |
| Frequency - Self Resonant | 32MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.315" W (10.50mm x 8.00mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for SRR0805-8R2M and get a quote within 24 hours.
