FIXED IND 560UH 260MA 2.6OHM SMD

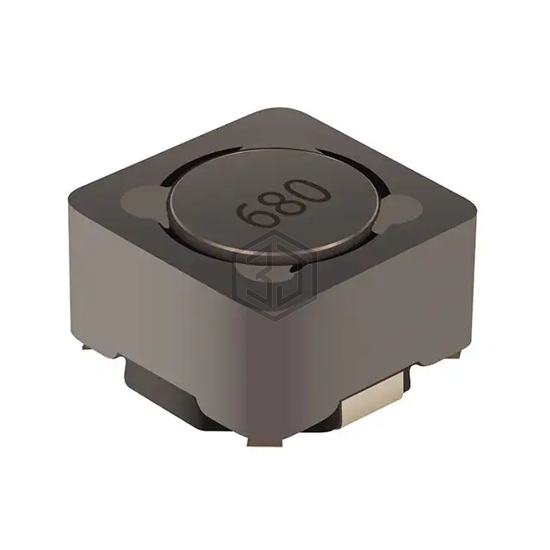

SRR0745A-561M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 560UH 260MA 2.6OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 260 mA.
In Stock: 3,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 560 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 260 mA |
| Current - Saturation (Isat) | 300mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.6Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
Submit your RFQ for SRR0745A-561M and get a quote within 24 hours.
