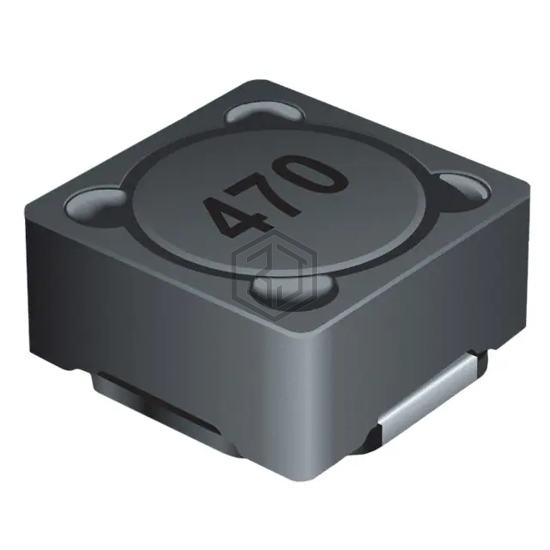

FIXED IND 330UH 330MA 2 OHM SMD
SRR0735A-331M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 330UH 330MA 2 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 330 mA.
In Stock: 63
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | 330mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 2Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
Submit your RFQ for SRR0735A-331M and get a quote within 24 hours.
