FIXED IND 33UH 600MA 430MOHM SMD

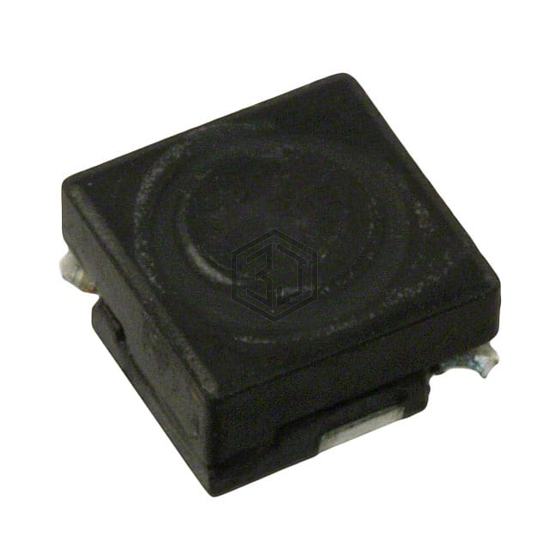

SRR0603-330KL is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 33UH 600MA 430MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, Corner Terminals, current rating (amps) 600 mA.
In Stock: 632
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 830mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 430mOhm Max |
| Q @ Freq | 15 @ 2.52MHz |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
Submit your RFQ for SRR0603-330KL and get a quote within 24 hours.
