IND 8.8X8.4X3.8MM 4.7UH20% 8.5A

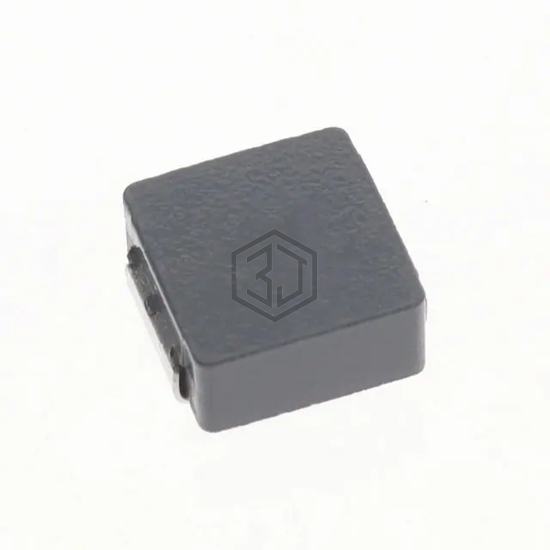

SRP8540A-4R7M is a Fixed Inductors manufactured by Bourns Inc.. IND 8.8X8.4X3.8MM 4.7UH20% 8.5A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case Nonstandard, current rating (amps) 8.5 A.
In Stock: 750
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Alloy Powder |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.5 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 29.5mOhm Max |
| Q @ Freq | 20 @ 100kHz |
| Frequency - Self Resonant | 17MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.346" L x 0.331" W (8.80mm x 8.40mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for SRP8540A-4R7M and get a quote within 24 hours.
