IND,7.1X6.6X3MM,4.7UH20%,6A,SHD

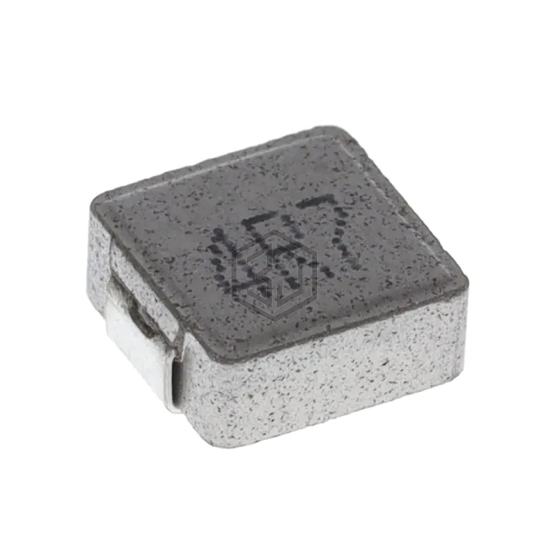

SRP6530A-4R7M is a Fixed Inductors manufactured by Bourns Inc.. IND,7.1X6.6X3MM,4.7UH20%,6A,SHD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 6 A.
In Stock: 924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 11A |
| Shielding | Shielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | 21 @ 7.96MHz |
| Frequency - Self Resonant | 22MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRP6530A-4R7M and get a quote within 24 hours.
