FIXED IND 470NH 20A 4 MOHM SMD

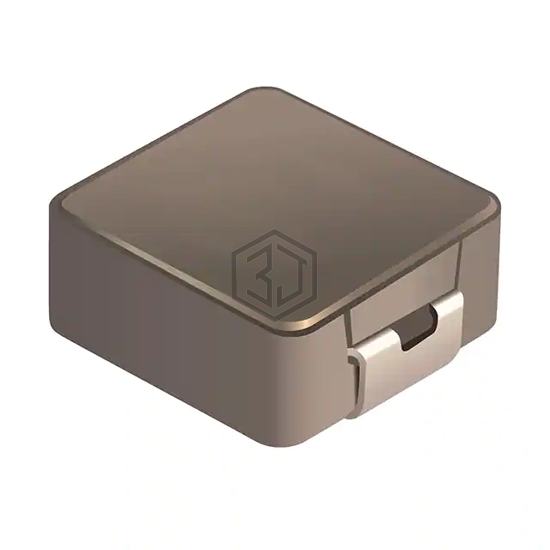

SRP6030VA-R47M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 470NH 20A 4 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 180°C, package / case Nonstandard, current rating (amps) 20 A.
In Stock: 950
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | 21A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4mOhm Max |
| Q @ Freq | 10 @ 100kHz |
| Frequency - Self Resonant | 65MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for SRP6030VA-R47M and get a quote within 24 hours.
