FIXED IND 470NH 11.5A 8.6MOHM SM

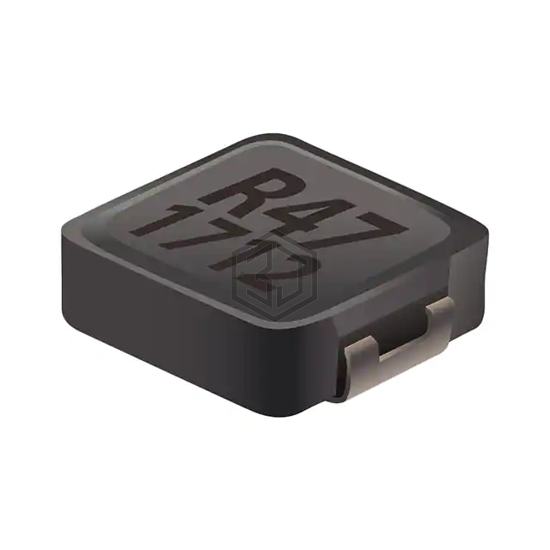

SRP5020TA-R47M is a Fixed Inductors manufactured by Bourns Inc.. FIXED IND 470NH 11.5A 8.6MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case Nonstandard, current rating (amps) 11.5 A.
In Stock: 6,688
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11.5 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8.6mOhm Max |
| Q @ Freq | 11 @ 100kHz |
| Frequency - Self Resonant | 100MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
